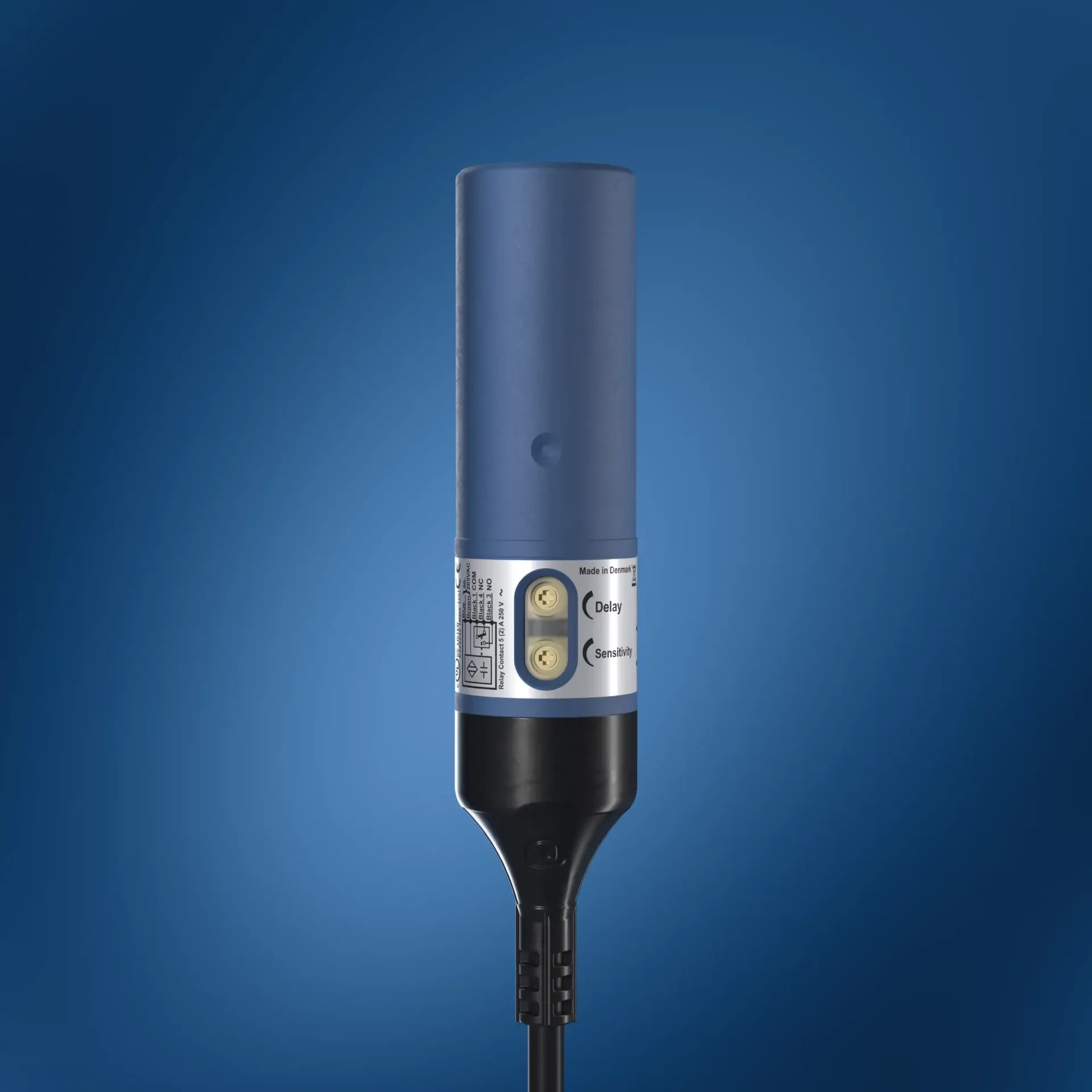

DOL 44 is a 30 mm capacitive relay sensor for detection of feed, grain, and solids with relay output including switch function. The sensor is applicable for level control in silos and containers along with controlling the filling and emptying process.
Different Variants for Different Needs
DOL 44 is available in a multitude of versions, such as the DOL 44RH with integrated heater for cold and/or high humidity applications avoiding condensation. DOL 44RT for detection of feed in tubes, and DOL 44R-33 with conical 30/32 mm enclosure.
Robust Functionality
DOL 44 has a high immunity to noise from electric communication (e.g. mobile phones) and transients (e.g. from motors and contactors). The IP69K protection class offers the highest protection against water and other liquids, e.g. during cleaning of livestock houses.
DOL 44 has full temperature compensation, and the sensor is very robust in regards to washing and EMC protection.
The sensor can, therefore, be used in environments with frequency converters.
Easy to Operate
The sensor has robust functionality and is easy to operate. Settings are easily changed via two trimmers using a small screwdriver.
A red LED light clearly indicates the current status of the relay sensor.
Flexible Mounting
This sensor comes with smooth or threaded housing and with T-piece for mounting on a 40-60mm tube with conveying system.
DOL 44 can be mounted inside a feeder or through a hole into a feeder, a hopper, or a silo with the included plastic gland.
With the specially designed T-piece, DOL 44 can be mounted on a 40-60mm tube with conveying system using only the T-piece and three zip ties. With this mounting option, DOL 44 can still be adjusted even though the sensor has been mounted, which is not possible with normal sensors on the market as adjustment on DOL 44 is placed in the wire end of the sensor.
The sensor is also available in variants with integrated heater for cold and/or high humidity applications to avoid condensation.
Low or high voltage
DOL 44 with low (10-30V AC/DC), high voltage (90-265V AC) or universal voltage (20-280V AC/DC) is a 30 mm relay sensor with trimmers placed vertically.
Conical housing
DOL 44 comes with conical housing – 30 mm at the end and 32 mm at the buttom (wire end).
30mm Barrel, NO/NC Relay Output, 0 to 4 hour Delay, 0-15mm Sensitivity, 2m Cable
- 100300 33mm, Smooth, Off, 90-265VAC
- 100301 33mm, Smooth, On, 90-265VAC
- 100305 33mm, Smooth, Off, 90-265VAC, Heat
- 100307 33mm, Smooth, On, 90-265VAC, Heat
- 100309 33mm, Smooth, Off, 10-30VAC/DC
- 100607 30mm, Thread, Off, 10-30VAC/DC
- 100608 30mm, Thread, Off, 90-265VAC
- 100609 30mm, Smooth, Off, 10-30VAC/DC
- 100610 30mm, Smooth, Off, 90-265VAC
- 100618 30mm, Thread, Off, 90-265VAC, Heat
- 100620 30mm, Smooth, Off, 90-265VAC, 0-10mm
- 100624 30mm, Smooth, Off, 90-265VAC, 0-10mm, 0.8m Cable
- 100625 30mm, Thread, Off, 10-30VAC/DC, Semi-Flush
- 100626 30mm, Thread, Off, 90-265VAC, Semi-Flush
- 100627 30mm, Smooth, On, 90-265VAC, 2-14mm, Reduced Hy
- 100630 30mm, Smooth, Off, 20-280VAC/DC, 0-20mm
- 100631 30mm, Thread, Off, 20-280VAC/DC, 0-20mm
- 100634 30mm, Thread, On, 20-280VAC/DC, 0-20mm
- 100635 30mm, Thread, Off, 90-265VAC
- 100636 30mm, Thread, Off, 20-280VAC/DC, 0-20mm
- 100637 30mm, Thread, Off & On, 20-280VAC/DC, 10mm
